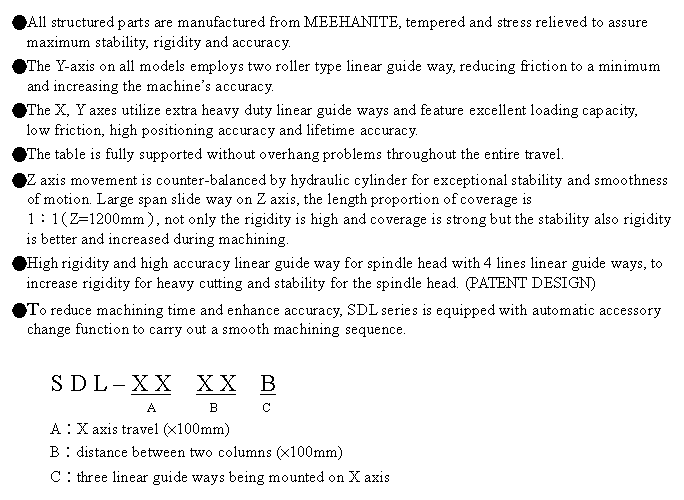

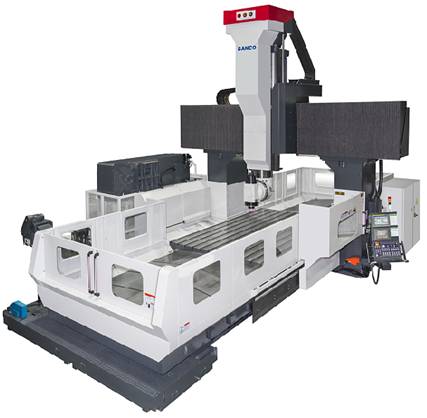

SDL series
X/Y axis linear guide ways
Z axis with four line linear guide ways-patent design
|
MODEL |
UNIT |
SDL-4235 |
SDL-5235 |
SDL-6235 |
SDL-7235 |
|
|
TABLE |
||||||
|
Overall Size |
mm |
4000×3000 |
5000×3000 |
6000×3000 |
6000×3000 |
|
|
Max. Loading |
ton |
14 |
20 |
24 |
24 |
|
|
TRAVEL |
||||||
|
X Axis |
mm |
4200 |
5200 |
6200 |
7200 |
|
|
Y Axis |
mm |
4000 |
||||
|
Z Axis |
mm |
1200 / (opt. 900 or 1400) |
||||
|
DISTANCE |
||||||
|
Between Two Columns |
mm |
3500 |
||||
|
Spindle Nose to Table Top |
mm |
270~1170 (Z= 900) / 270~1470 (Z=1200) / 270~1670 (Z=1400) |
||||
|
SPINDLE |
||||||
|
Speed |
rpm |
6000 (Driven by Gear Box) |
||||
|
Motor-cont / 30 min |
kW |
FANUC 15/18.5 (opt. 22/26 or 30/37) |
||||
|
Taper |
|
BT/DIN/CAT-50 (opt. BT/DIN/CAT-40) |
||||
|
ATC |
||||||
|
No. of ATC |
tools |
24 (opt. 32/40/60) |
||||
|
Max. Tool Length |
mm |
350 |
||||
|
Max. Tool Weight |
kg |
15 |
||||
|
MISCELLANCOUS |
||||||
|
Power Required |
kVA |
50 |
||||
|
CNC Controller |
|
FANUC 0i-MF (opt. MITSUBISHI / SIEMENS / HEIDENHAIN) |
||||
|
●Standard Accessories |
●Optional Accessories |
|||||
|
Spindle Air Blast System Spindle Oil Cooler Automatic Lubrication System M. P. G. Heat Exchanger in Cabinet Automatic Power off Working Lamp & Alarm Lamp Screw Auger、Chain type Chip Conveyor、Cart Machine & Controller Manual Levelling Bolts & Pads Tool Box for Machine Adjustment RS-232C / RJ-45 Terminal Interface AICC II (200 block / 30m) DATA SERVER + 2G CF Card Splash Guard |
Automatic Attachment Changer System (AAC) Spindle Motor Upgrade Auxiliary Table 4th Axis Rotary Table Air Conditioner in Cabinet Milling Head ATC with 32/40/60 Tools Magazine Coolant Through Spindle (C.T.S.) Linear Scale for Three Axes Auto. Tool Setter Renishaw (TS-27R) Auto. Workpiece Measurement (OMP-60 / RMP-60) Cutting Coolant Mist Device Full Splash Guard with Top Cover Heat Compensation CNC Controller (MITSUBISHI / SIEMENS / HEIDENHAIN) |
|||||
|
Specifications are subject to change without notice |
||||||
