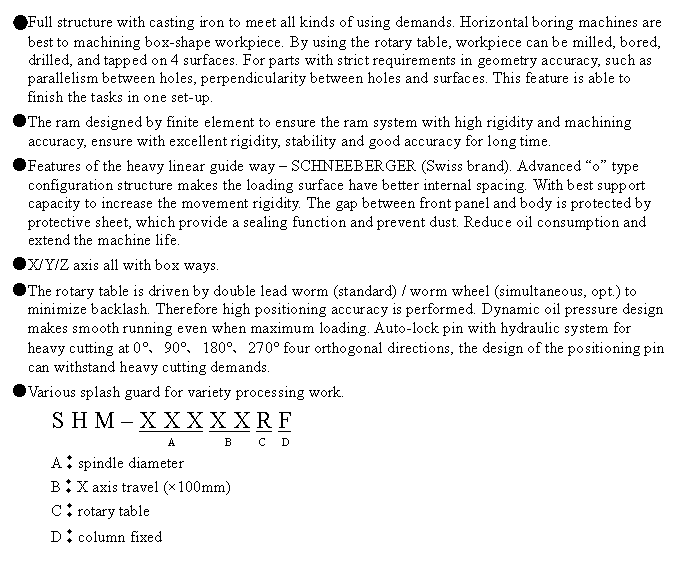

MODEL

UNIT

SHM-11020RF

TABLE

Overall Size

mm

1200×1000×0.001°

(with simultaneously rotating while machining)

Max. Loading

ton

5

Height from ground

mm

1235

TRAVE

X axis travel

mm

2000

Y axis travel

mm

1600

Z axis travel

mm

1400

W axis travel

mm

400

Distance from table center to spindle nose

mm

400~1800

SPINDLE

Diameter

mm

110

Speed

mm

2500

Motor – cont. / 30min.

kW

FANUC 15/18.5 (opt. 22/26)

Taper

BT/DIN/CAT-50

ATC

No. of tools

40 / (opt. 60)

Max tool length

mm

400

Max tool weight

kg

35

MISCELLANEOUS

Power supply

kVA

45

CNC controller

FANUC 0i-MF

●Standard Accessories

●Optional Accessories

Spindle Air Blast System

Spindle Oil Cooler

Automatic Lubrication System

Hydraulic system

M.P.G.

Heat Exchanger in Cabinet

Automatic Power off

Working Lamp & Alarm Lamp

Screw Auger、Chain type Chip Conveyor、Cart

Machine & Controller Manual

Levelling Bolts & Pads

Tool Box for Machine Adjustment

RS-232C / RJ-45 terminal interface

AICC II (200 block / 30m)

X/Y/Z axis linear scales

Spindle motor upgrade

Auxiliary work table

Air conditioner at cabinet

Spindle extension sleeve (300 / 500mm)

Manual 90° milling head /

Manual universal milling head

Facing head

ATC system (60 tools)

Coolant Through Spindle (C.T.S.)

Auto. Tool Setter Renishaw (TS-27R)

Auto. Workpiece Measurement (OMP-60)

Various splash guard & cover

DATA SERVER + 2G CF card

CNC controller (MITSUBISHI / SIEMENS / HEIDENHAIN)

Specifications are subject to change without notice
