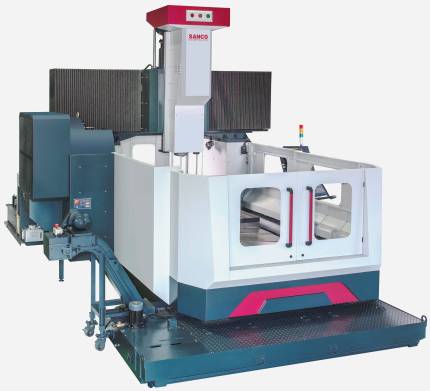

SVW series
Three axes with linear guide ways
|
MODEL |
UNIT |
SVW-3223 |
SVW-4223 |
|
|
TABLE |
||||
|
Overall Size |
mm |
3000×2000 |
4000×2000 |
|
|
Max. Loading |
ton |
13 |
15 |
|
|
TRAVEL |
||||
|
X Axis |
mm |
3200 |
4200 |
|
|
Y Axis |
mm |
2100 |
||
|
Z Axis |
mm |
800 / (opt. 1000) |
||
|
DISTANCE |
||||
|
Between Two Columns |
mm |
2300 |
||
|
Spindle Nose to Table Top |
mm |
240~1040 (Z=800) / 240~1240 (Z=1000) |
||
|
SPINDLE |
||||
|
Speed |
rpm |
6000 (driven by gear box) |
||
|
Motor-cont / 30 min |
kW |
FANUC 15/18.5 (opt. 22/26) |
||
|
Taper |
|
BT/DIN/CAT-50 (opt. BT/DIN/CAT-40) |
||
|
ATC |
||||
|
No. of ATC |
|
24 (opt. 32/40/60) |
||
|
Max. Tool Length |
mm |
350 |
||
|
Max. Tool Weight |
kg |
18 |
||
|
MISCELLANCOUS |
||||
|
Power Required |
kVA |
50 |
||
|
CNC Controller |
|
FANUC 0i-MF (opt. MITSUBISHI / SIEMENS / HEIDENHAIN) |
||
|
●Standard Accessories |
●Optional Accessories |
|||
|
Spindle Air Blast System Spindle Oil Cooler Automatic Lubrication System M. P. G. Heat Exchanger in Cabinet Automatic Power off Working Lamp & Alarm Lamp Screw Auger、Chain type Chip Conveyor、Cart Machine & Controller Manual Levelling Bolts & Pads Tool Box for Machine Adjustment RS-232C / RJ-45 Terminal Interface AICC II (200 block / 30m) Splash Guard |
Spindle Motor Upgrade Auxiliary Table 4th Axis Rotary Table Air Conditioner in Cabinet Milling Head ATC with 32/40/60 Tools Magazine Coolant Through Spindle (C.T.S.) Linear Scale for Three Axes Auto. Tool Setter Renishaw (TS-27R) Auto. Workpiece Measurement (OMP-60 / RMP-60) Full Splash Guard with Top Cover Heat Compensation CNC Controller (MITSUBISHI / SIEMENS / HEIDENHAIN) DATA SERVER + 2G CF card Ball screw with cooling function |
|||
|
Specifications are subject to change without notice |
||||
