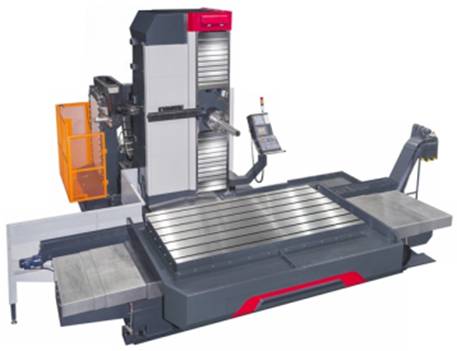

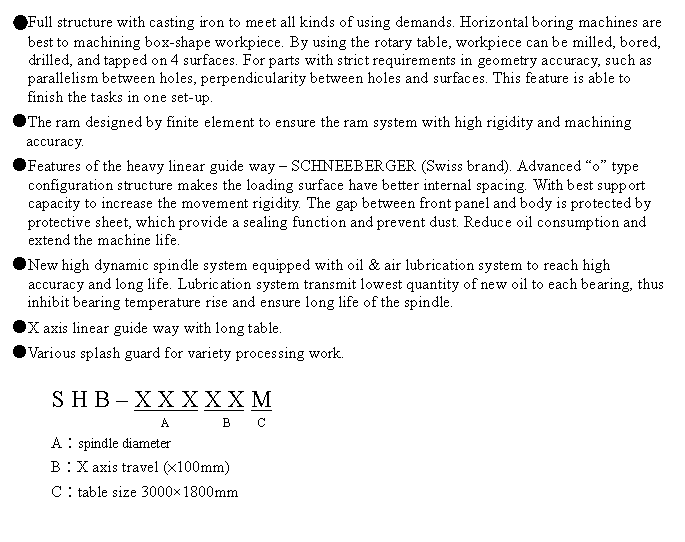

SHB series
|
MODEL |
UNIT |
SHB-11030M |
|
|
TABLE |
|||
|
Overall Size |
mm |
3000×1800 |
|
|
Max. Loading |
ton |
15 |
|
|
Height from ground |
mm |
1260 |
|
|
TRAVE |
|||
|
X axis travel |
mm |
3000 |
|
|
Y axis travel |
mm |
1800 / (opt. 2000/2300/2500) |
|
|
Z axis travel |
mm |
1500 / (opt. 1700) |
|
|
W axis travel |
|
500 / (opt. 700) |
|
|
Distance from table center to spindle nose |
mm |
785~2280 (2480) |
|
|
SPINDLE |
|||
|
Diameter |
mm |
110 |
|
|
Speed |
mm |
3200 |
|
|
Motor – cont. / 30min. |
kW |
FANUC 22/26 (opt. 30/37) |
|
|
Taper |
|
BT/DIN/CAT-50 |
|
|
ATC |
|||
|
No. of tools |
|
40 / (opt. 60) |
|
|
Max tool length |
mm |
400 |
|
|
Max tool weight |
kg |
35 |
|
|
MISCELLANEOUS |
|||
|
Power supply |
kVA |
45 |
|
|
CNC controller |
|
FANUC 0i-MF |
|
|
●Standard Accessories |
●Optional Accessories |
||
|
Spindle Air Blast System Spindle Oil Cooler Automatic Lubrication System Hydraulic system M.P.G. Heat Exchanger in Cabinet Automatic Power off Working Lamp & Alarm Lamp Screw Auger、Chain type Chip Conveyor、Cart Machine & Controller Manual Levelling Bolts & Pads Tool Box for Machine Adjustment RS-232C / RJ-45 terminal interface AICC II (200 block / 30m) X/Y/Z axis linear scales |
Spindle motor upgrade Auxiliary work table 4th rotary table Air conditioner at cabinet Spindle extension sleeve (300 / 500mm) Manual 90° milling head Manual universal milling head Facing head ATC system (60/90 tools) Coolant Through Spindle (C.T.S.) Auto. Tool Setter Renishaw (TS-27R) Auto. Workpiece Measurement (OMP-60) Various splash guard & cover DATA SERVER + 2G CF card CNC controller (MITSUBISHI / SIEMENS / HEIDENHAIN) |
||
|
Specifications are subject to change without notice |
|||
